Enhanced Bi - Directional Current and Power Monitoring Sensor Module with IIC I2C Interface - 5pcs

💍 INA226 Bi-Directional Current and Power Monitoring Sensor Module for Arduino

💥 The INA226 is a sophisticated current shunt and power monitoring device designed with a highly efficient I2C™ and SMBUS-compatible interface. This module offers exceptional capabilities for real-time monitoring of both shunt voltage drops and bus supply voltages. With its customizable calibration settings, adjustable conversion times, and averaging options, the INA226 facilitates accurate direct readings of current in amperes and power in watts, making it an invaluable tool for engineers and hobbyists alike.

⚡ This advanced sensor is equipped to detect current across common-mode bus voltages in a range from 0 V to 36 V, ensuring high versatility regardless of the power supply voltage used. It functions optimally with a single power supply voltage between 2.7 V and 5.5 V, maintaining a low supply current of just 330 μA. The INA226's robust design extends its operational temperature range from –40°C to 125°C, making it suitable for various demanding environments. Additionally, the device supports up to 16 programmable addresses on the I2C-compatible interface, enhancing its usability in multi-device configurations.

🔧 Key Features:

• Senses Bus Voltages: 0 V to 36 V
• High-Side or Low-Side Sensing: Flexible connection options for various applications
• Comprehensive Data Reporting: Accurately reports current, voltage, and power
• High Accuracy Metrics:
  • Gain Error: ±0.1% (Max)
  • Offset Voltage: ±10 μV (Max)
• Configurable Averaging: Options for optimal measurement performance
• Programmable Addresses: 16 unique I2C addresses for flexible connections
• Compact Design: 10-Pin, DGS (VSSOP) package for space-efficient integration

📦 Applications:

• Servers
• Telecommunication Equipment
• Computing Devices
• Power Management Systems
• Battery Chargers
• Power Supplies
• Test Equipment

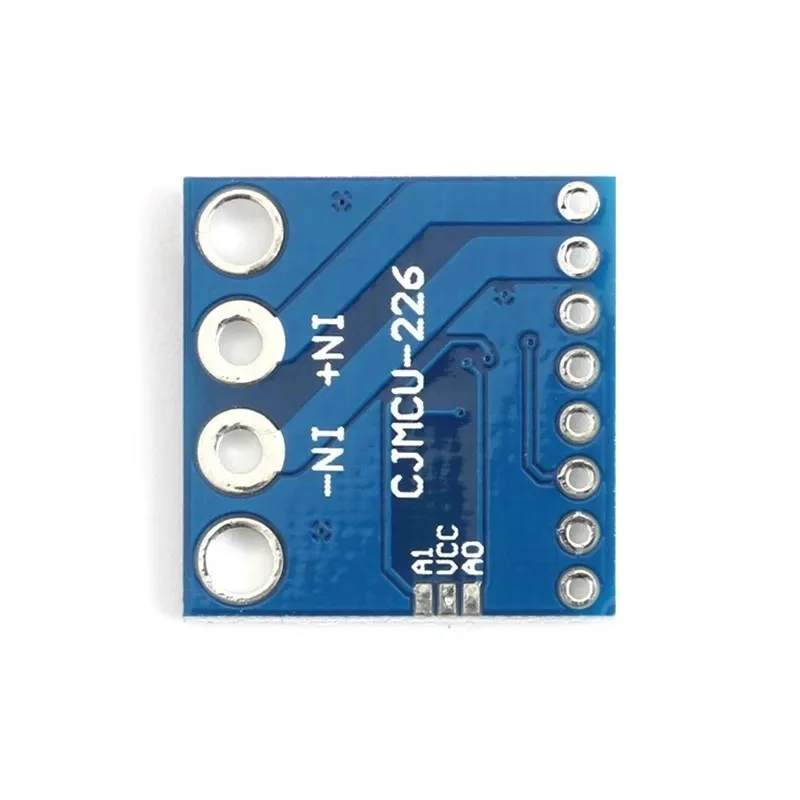

🔌 Pin Configuration:

• VBUS: Bus voltage input
• SDA/SCL: IIC bus data and clock signal lines
• ALERT: Multi-function alarm output
• A0/A1: IIC address lines
• IN+/IN-: Non-inverting and inverting analog inputs

💍 Designed for accurate and reliable performance, the INA226 sensor module is an essential component for anyone working on power management and monitoring applications, delivering advanced features and flexibility to enhance your projects.
