Versatile Wireless RF Smart Home Remote Control Switch (1Receiver 1Remote B)

🪶 Introducing the Remote Control Switch DC 5V-24V, a versatile and efficient wireless control solution for a variety of applications within your smart home. Capable of operating at multiple voltage levels including DC 5V, 6V, 7.4V, 9V, 12V, 14V, 16V, 18V, and 24V, this remote switch brings remarkable flexibility to your control systems.

Key Specifications:

• Quiescent / Standby Current: 3.6-10mA
• Working Current: 70-130mA (please monitor power supply if using a mini battery)
• Relay Standard: 10A
• Max Load: 10A Relay; Resistive Load ≤ 8A; Inductive Load ≤ 3A
• Board Size: 31.3mm x 34.8mm x 17mm
• Case Size: 40mm x 37mm x 25mm
• Working Frequency: 433.92MHz

Working Modes:

🔘 This remote control switch features multiple modes of operation, adaptable through a learning button:

• Momentary: Press and hold to activate; release to deactivate.
• Toggle: Single press activates; press again to deactivate.
• Latched: Press A to activate and B to deactivate (includes a 2-button transmitter).
• Momentary with Time Delay: Options available for 5s, 10s, 15s, or 20s time delays off after releasing the button.
• Power ON Receiver ON: Default state, can be toggled with the remote.

🔍 Learning and Clearing Codes:

Configure your remote switch effortlessly:

• Clear Existing Codes: Press the learning button 9 times; LED indicator will flash to confirm code clearance.
• Learning New Codes: Select your desired mode and follow the LED indicators' confirmations for seamless pairing with your transmitter.

🔍 Wiring Guidelines:

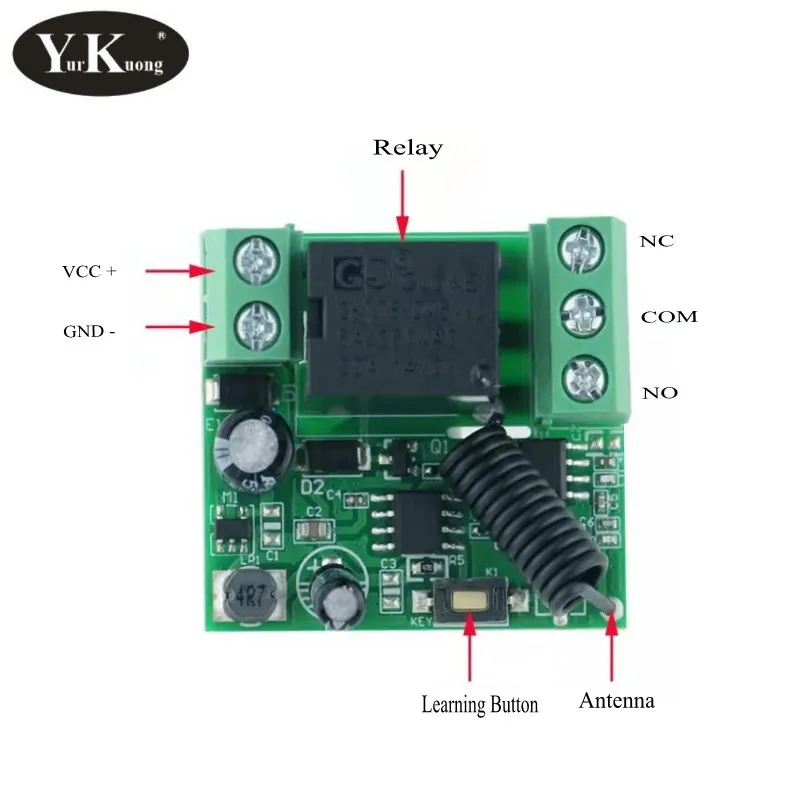

👌 Illustrated connection points for easy integration:

• V-: Connect to Input GND
• V+: Connect to Input VCC +
• NC: Normally Closed Connection
• COM: Common Connection
• NO: Normally Open Connection

📶 Elevate your home automation experience with the Remote Control Switch DC 5V-24V. Whether you need instant control or timed delays, this RF wireless switch is engineered to meet your needs with reliability and ease.
