Product Overview:

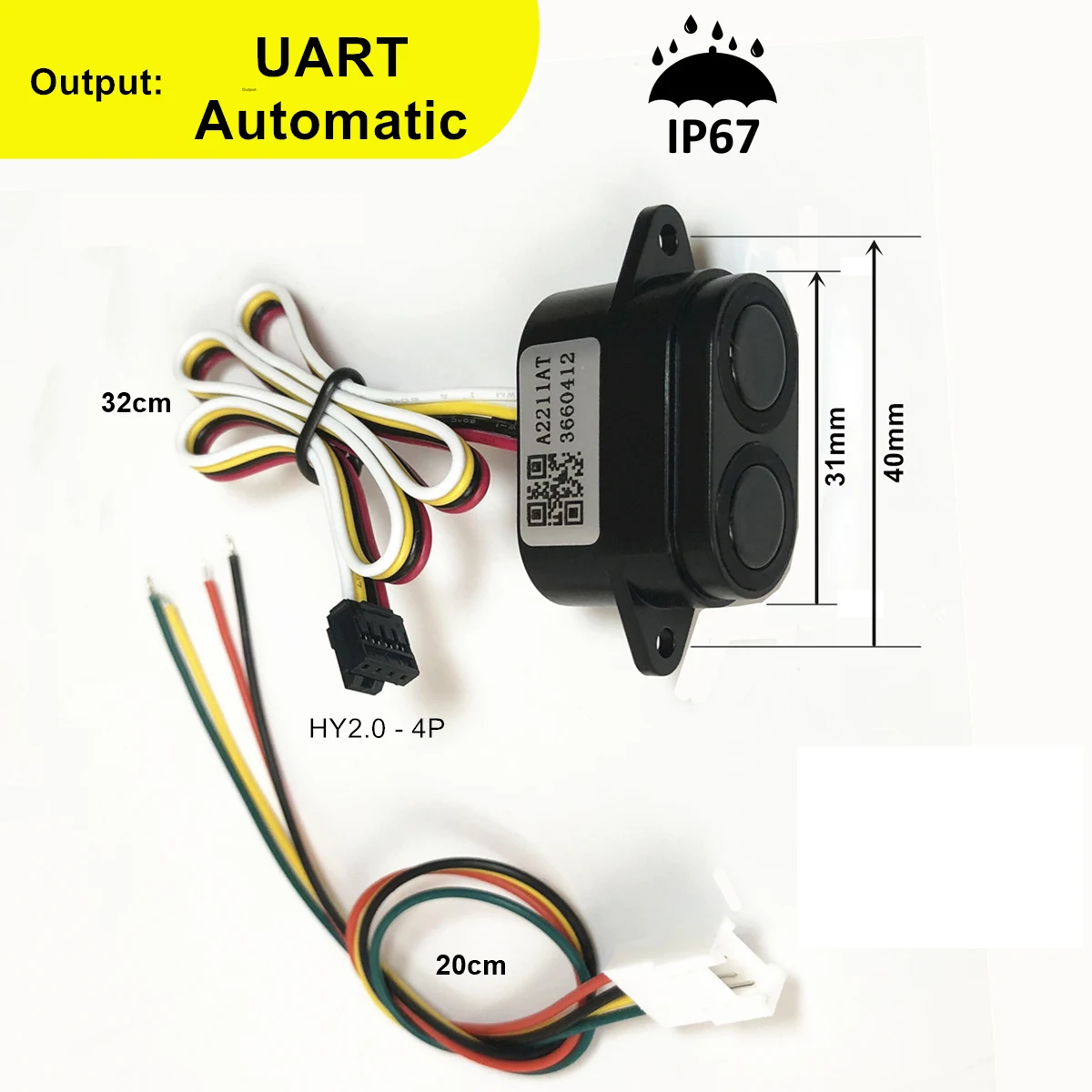

🕊️ The Mini Ultrasound Ultrasonic Sensor Module, identified by Serial No. GL-A22, is a compact and efficient distance measurement device designed for a variety of applications including automated systems, robotics, and liquid level detection. With an impressive operational range of 1 to 300 cm (approx. 118 inches) and an ultra-short blind zone of just 1 cm, this sensor ensures accurate and responsive data capture while maintaining a lightweight and portable design.
🔧 Key Features:
- Multiple Output Options: Supports various output types including UART Automatic, UART Controlled, PWM Pulse Width, RS485, IIC, and Switch, making it versatile for different project requirements.
- Wide Operating Voltage: Functions efficiently within a broad voltage range of 3.3 to 12V DC, accommodating various power supply configurations.
- Industrial Level Precision: Delivers exceptional accuracy under diverse conditions, with performance ensured through rigorous testing procedures.
- Low Power Consumption: Designed for energy efficiency, it consumes minimal power, especially in standby mode.
- Robust Environmental Protection: With an IP67 rating, the sensor is water-proof and dust-tight, allowing it to operate effectively in challenging environments.
- Temperature Compensation: Engineered to maintain accuracy within a working temperature range of -15°C to 60°C, catering to a variety of operational needs.
- Electrostatic Protection: Ensures compliance with EMC directives, safeguarding the module from electrical interference.
🧩 Product Specifications:
| Attribute |
Details |
| Working Humidity |
Max. 80% RH |
| Weight |
21g |
| Dimensions |
16mm Width |
| Connector Type |
HY2.0-4P |
Output Modes Explained:
The Mini Ultrasound Ultrasonic Sensor Module operates in several modes, each suited for specific applications:
- UART Automatic: The sensor performs measurements autonomously, transmitting processed values at set intervals.
- UART Controlled: Requires a triggering signal to capture the distance, ideal for situations needing precise timing.
- PWM Controlled: Utilizes pulse width modulation to convey distance, allowing for real-time feedback in dynamic environments.
- RS485 Output: Facilitates long-distance communication, perfect for industrial applications where distance may exceed conventional limits.
- IIC (I²C) Output: Supports connection with multiple sensors, enhancing the flexibility for complex systems.
- Switch Output: Enables the module to trigger alerts based on preset distance thresholds, suitable for automation and monitoring tasks.
🛠️ Application Areas:
This ultrasonic sensor module is ideal for a wide range of applications, including:
- Automated Guided Vehicles (AGV)
- Parking Automation Systems
- AI Robotics
- Object Proximity Detection
- Horizontal and Liquid Level Measurement
🧩 Customization Options:
🌟 Our dedicated R&D team is available for customization projects, enabling tailored solutions that meet specific operational needs. If you have a unique project in mind, please consult with our sales assistant online.
Conclusion:
🧩 The Mini Ultrasound Ultrasonic Sensor Module is a sophisticated yet user-friendly tool suitable for various sensing applications that require reliable and precise distance measurements. Its robust specifications and features, combined with customizable options, make it an invaluable addition to any tech or automation project.
