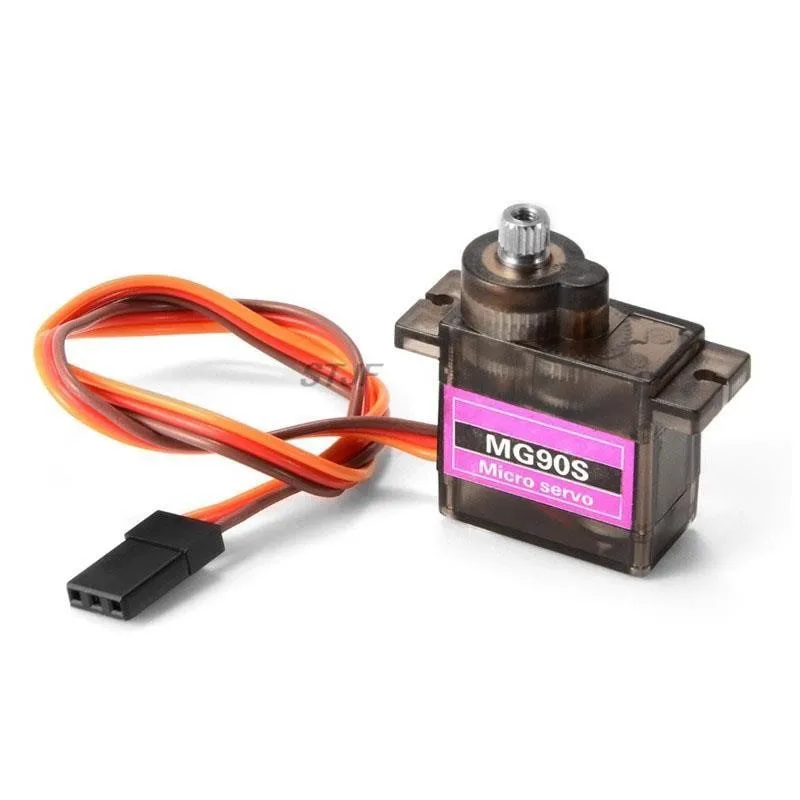

High - Performance Metal Gear Servo for RC Models and DIY Projects (MG90S plastic gears)

🔩 SG90 MG90S Servo Metal Gear: Precision Control for Your Model Projects

🔩 Unlock the potential of your model creations with the SG90 and MG90S Servo Metal Gears, specifically designed for a variety of applications including model helicopters, boats, airplanes, and more. Perfect for hobbyists working with Arduino systems or any electric model aircraft, these servos provide reliable performance in small and medium-sized electric models.

🔧 Product Features:

• Model Options: Available in SG90 (standard) and MG90S (metal gear version) for enhanced durability and torque.
• Control Precision: Both servos feature precise rotation control, with the SG90 offering a 0-180° range and the MG90S providing continuous rotation options, making them versatile for different modeling needs.
• Operating Specifications:
  • SG90: Operating voltage of 4.2V, stall torque of 1.6kg/cm, and an operating speed of 0.1 seconds for a 60° rotation at 4.8V.
  • MG90S: Enhanced 2kg/cm torque, operating speed of 0.11 seconds for a 60° rotation at 4.8V, and built with a combination of aluminum and plastic for increased strength.
• Controller Compatibility: Both servos are compatible with standard JR and Futaba plug types, ensuring easy integration with your existing equipment.
• Durability: The MG90S features a robust metal gear construction, offering superior durability for high-torque applications compared to the nylon gears of the SG90.

🔩 Steering Gear Control:

🪶 The control of the steering gears relies on a time base pulse of approximately 20ms, where the high-level pulse corresponds to the angle control within a specific range:

• SG90 (0-180°):
  • 0.5ms = 0 degrees
  • 1.0ms = 45 degrees
  • 1.5ms = 90 degrees
  • 2.0ms = 135 degrees
  • 2.5ms = 180 degrees
• MG90S (360° Continuous Rotation): Functions like a geared motor with variable speed, allowing control over both speed and direction.

🧩 Packaging Options: Available in various quantities (2, 4, 5, 10, or 20) to suit your project needs, each package includes the servo motor along with essential accessories such as multi-arms and fixing screws.

Specifications Overview:

🪶 Both models share similar dimensions, measuring 22.8 x 22.4 x 12 mm, and operate effectively within a temperature range of 0℃ to 55℃. The SG90 has a dead band width of 10usec while the MG90S features a tighter dead band of 5msec, enhancing responsiveness in control. Connector wires are 250mm long, with color-coded connections for easy setup.

🔩 Enhance your model's performance with the SG90 and MG90S Servo Metal Gears, designed for precision and built to last. Whether for educational projects, competitive racing, or leisurely flying, these servos are ready to meet your expectations.
