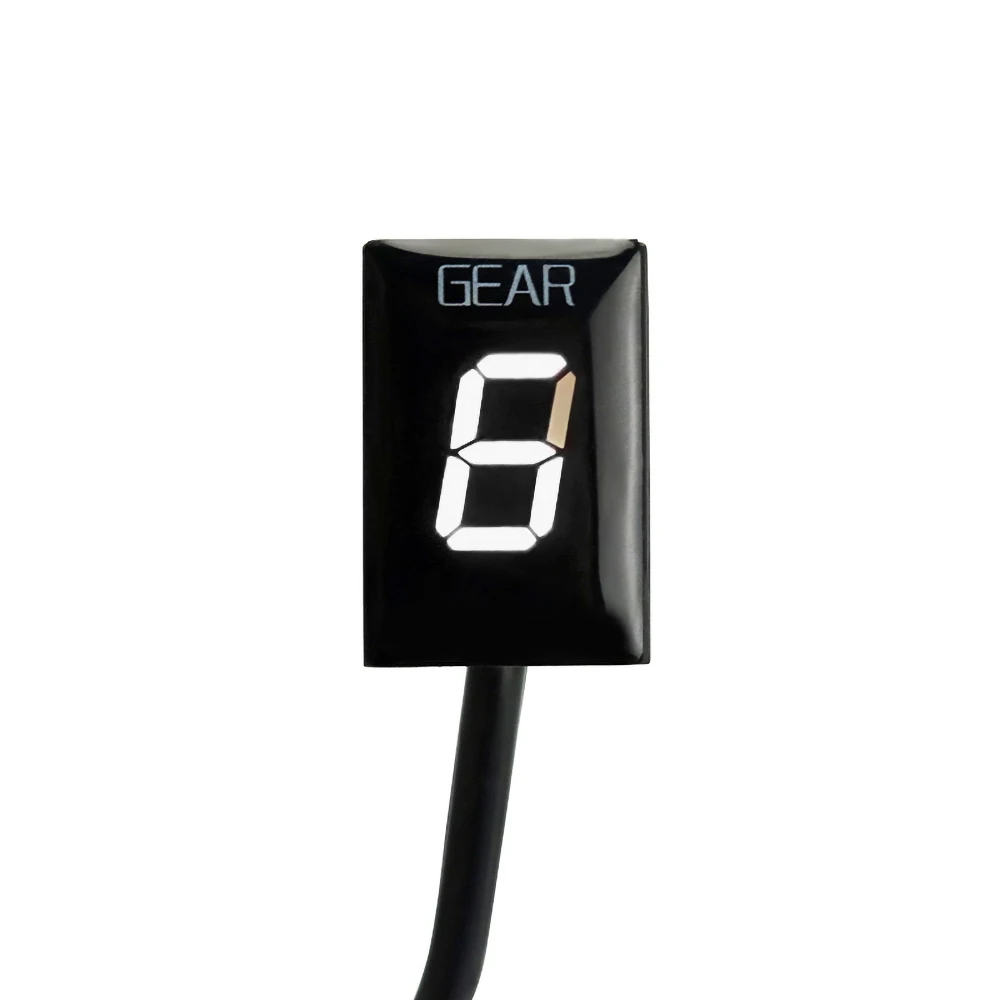

Motorcycle LED Gear Indicator Speed Display Meter (White)

Product Overview:

🛠️ The innovative Motorcycle LED 1-6 Gear Indicator Speed Digital Display Meter is meticulously designed for Kawasaki models Z750 and Z1000, covering years 2007, 2008, and 2009. Enhance your riding experience with this precision-engineered gear display that provides real-time gear information directly on your motorcycle. Ride with confidence, knowing the exact gear you’re in at any moment.

🎯 Features and Benefits:

💍 • Intuitive Visibility: The gear indicator prominently displays the current gear number, ranging from 1 to 6, including a neutral indicator, ensuring you always know your motorcycle's status.

🏎️ • Superior Detection: Utilizing advanced technology, this device detects the current gear faster and more accurately than traditional indicators that rely on speedometer or tachometer signals.

🧩 • Flexible Installation: The display unit is versatile and can be mounted anywhere on the motorcycle for convenient visibility and access.

Installation Guidance:

⚫ Begin by locating the 4-pole male diagnostic connector (DLC), typically found near the ECU box, potentially concealed by a removable cap or black tape. Ensure the bike’s engine is warm before setup for optimal idle speed. A long, straight road with minimal traffic is ideal for the setup process.

🔍 1. Turn on the ignition; the display will count down from 6 to 1, indicating memory clearance.

💍 2. When "L" appears, start the engine in Neutral. As "1" flashes, select first gear, release the clutch, and ride normally. The unit learns each gear progressively, flashing faster during learning. Continue this process for each gear until "o" (over) is displayed in the top gear, signifying completion. The display now accurately indicates all gears.

🏆 Performance Adjustment:

🔍 Should gear indication errors arise, reset the unit and repeat the setup. Modifications to your motorcycle's gearing or speedometer additions necessitate a reset. This can be performed by cutting the unit’s power six times consecutively while the display shows 3, 4, or 5. Subsequent power activation reverses the display count from 6 to 1, clearing memory and permitting a fresh setup.
