Enhanced Development Board with QingKe RISC - V2A MCU, 1 - Wire SDI System, 48MHz Frequency (CH32V003 KIT)

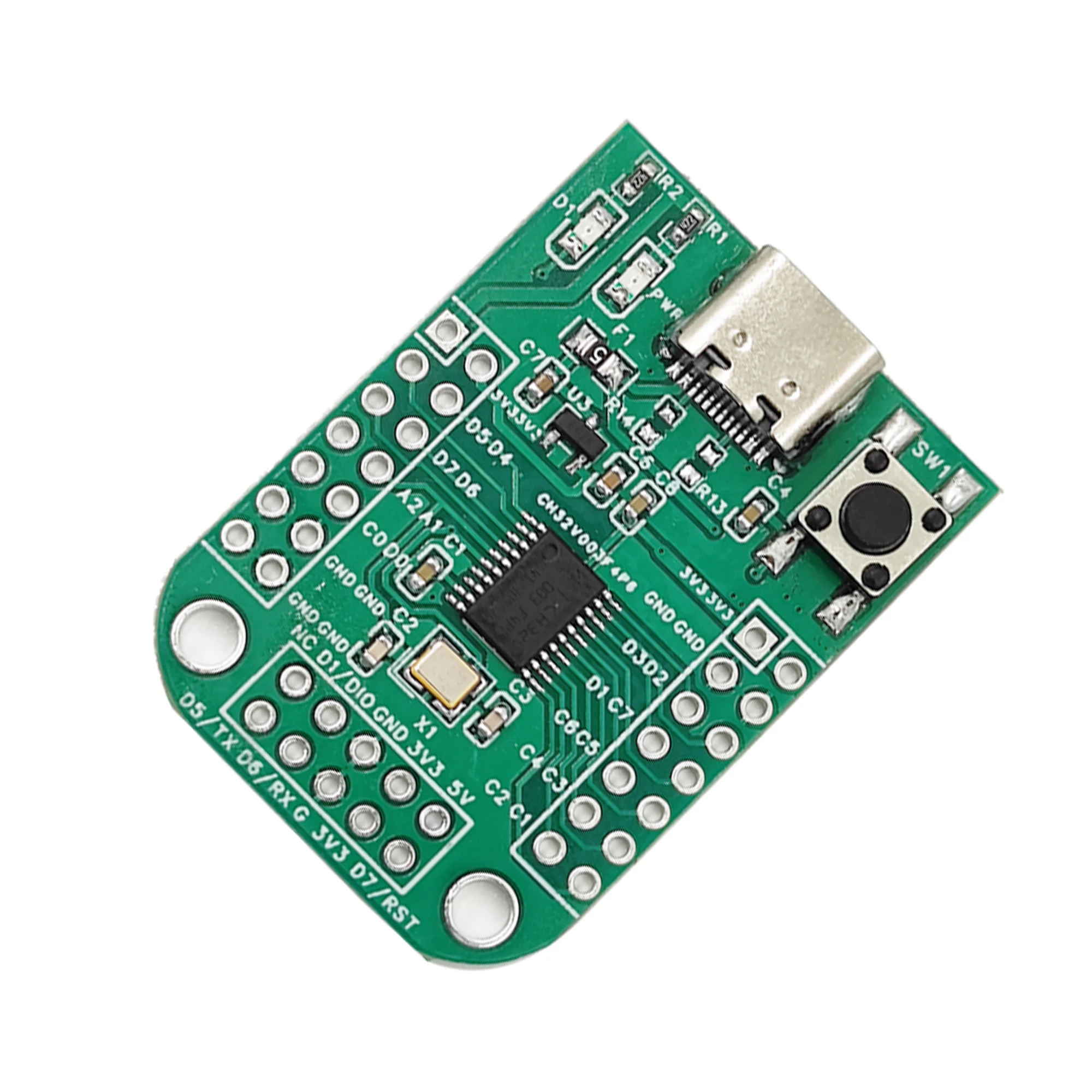

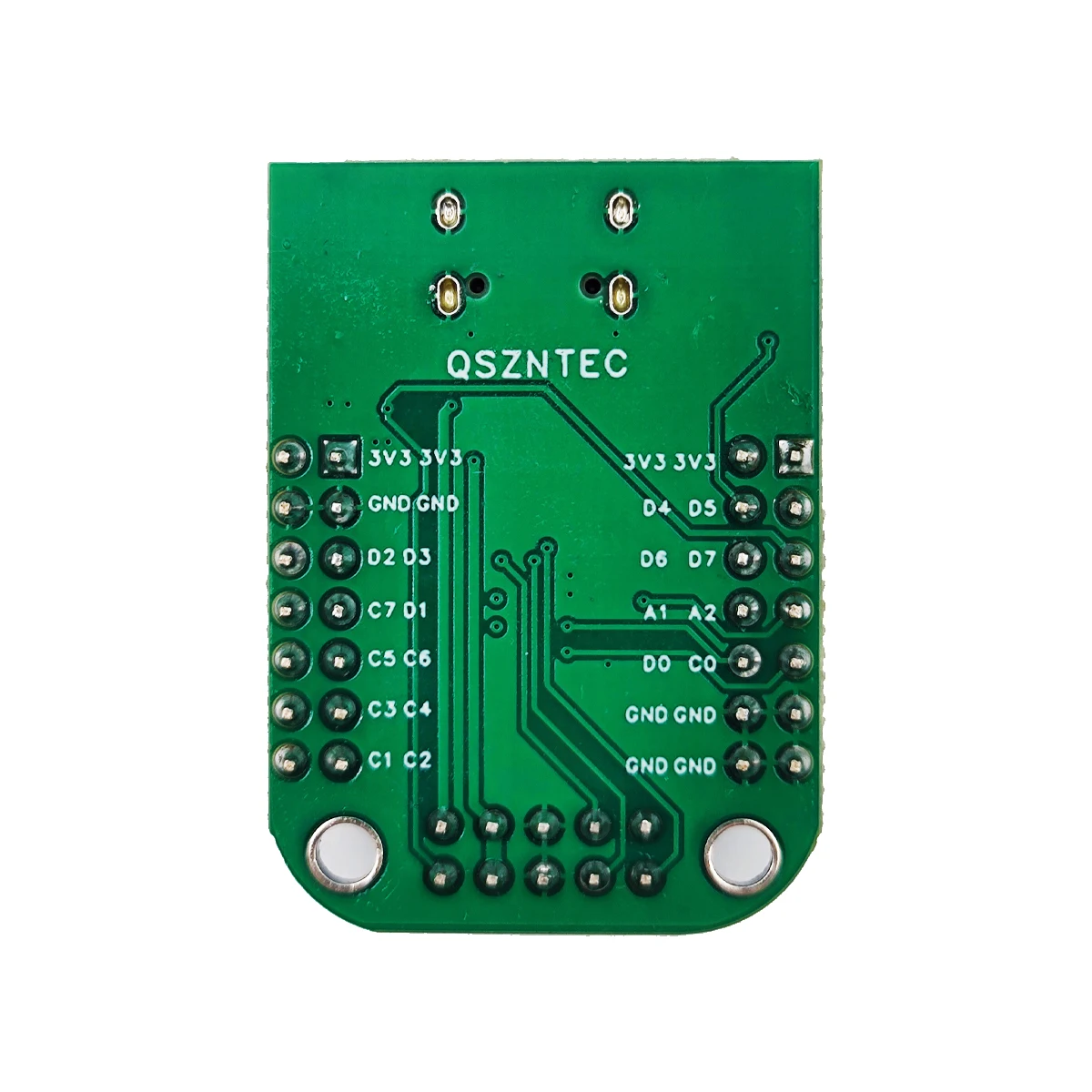

CH32V003 EVT Development Board

💍 Introducing the CH32V003 series, a state-of-the-art development board that harnesses the power of the QingKe RISC-V2A core. Designed for industrial applications and general-purpose use, this microcontroller offers a remarkable main frequency of 48MHz, ensuring robust performance across a variety of projects. The CH32V003 series stands out with its exceptional low power consumption paired with a wide operational voltage range, making it an ideal choice for energy-efficient designs.

📦 With a compact form factor, this microcontroller is engineered to fit seamlessly into space-constrained environments. Its integrated features include a built-in DMA controller, a 10-bit ADC, operational amplifiers, multiple timers, and standard communication interfaces such as USART, IC, and SPI. This comprehensive set of functionalities enables developers to create complex applications with ease.

🔧 Key Features:

• Powered by a 32-bit RISC-V2A processor that supports 2-level interrupt nesting for advanced control.
• Delivers processing capabilities with a maximum system frequency of 48MHz.
• Equipped with 2KB of SRAM and 16KB of Flash memory for efficient data handling and storage.
• Operates within a power supply range of 3.3V to 5V.
• Features multiple low-power modes, including Sleep and Standby, for energy-saving operations.
• Integrates power-up/down reset mechanisms and a programmable voltage detector for enhanced reliability.
• Includes a 1-channel general-purpose DMA controller to facilitate more efficient data transfers.
• Features an operational amplifier (OPA) providing versatile analog signal processing.
• Incorporates a 10-bit ADC to enable accurate analog-to-digital conversions.
• Supports a flexible timing architecture with a 16-bit advanced control timer and a 16-bit general-purpose timer, along with two watchdog timers and a 32-bit SysTick timer.
• Offers various communication options with one USART interface, along with dedicated IC and SPI interfaces.
• Provides 18 I/O ports with external interrupt mapping for expanded connectivity.
• Features a unique 64-bit chip ID for easy identification and security.
• Includes a 1-wire serial debug interface (SDI) for straightforward debugging and programming.

🪶 The CH32V003 EVT Development Board is a powerful and versatile tool that makes it easier than ever to prototype and develop applications that require high performance, low power consumption, and flexibility. Whether you're working on IoT projects, automation systems, or embedded applications, this development board provides everything you need to bring your ideas to life.
