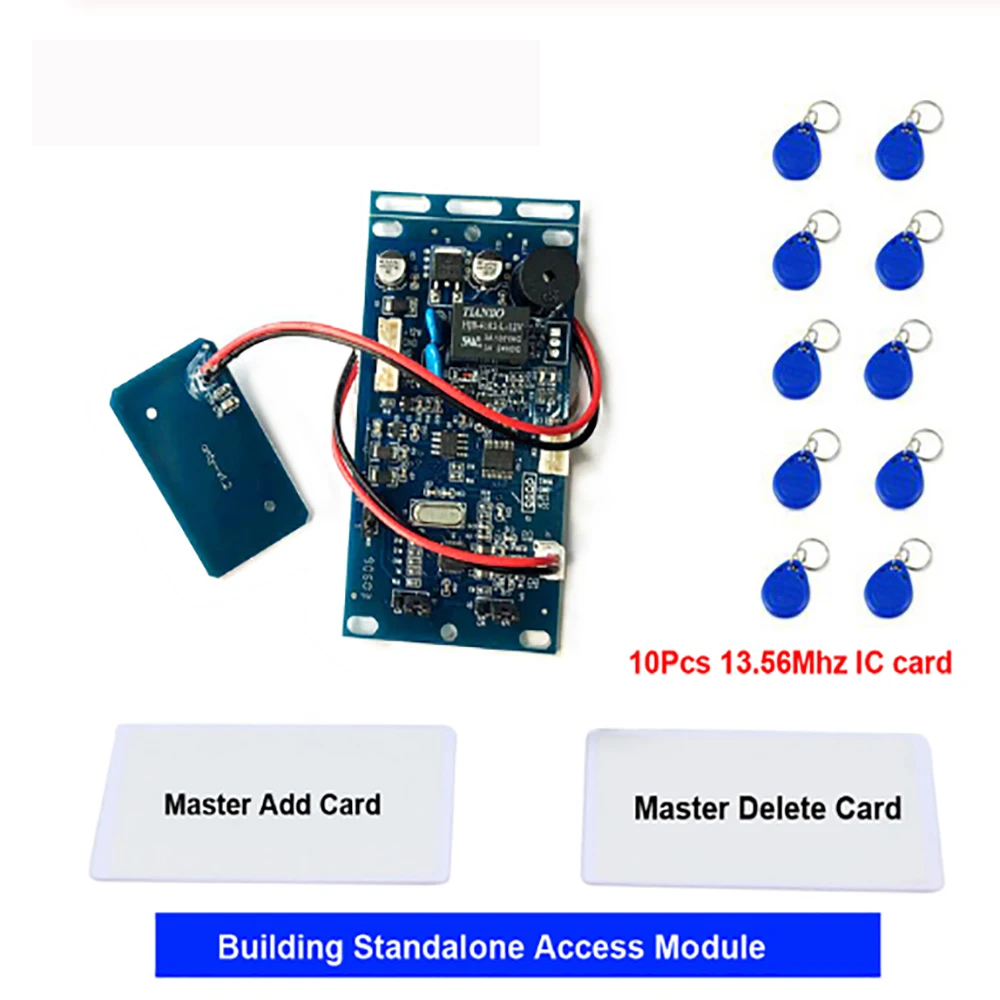

Multifrequency RFID Access Control System (13.56Mhz IC)

💍 Introducing the 125Khz/13.56Mhz RFID Proximity Access Control System Board, a state-of-the-art solution designed to enhance security and streamline access management in buildings. This versatile embedded module is equipped with advanced technology, offering seamless integration for intercom systems and access control applications.

🔧 Key Features:

• Dual Frequency Compatibility: Supports both 125Khz EM/ID cards and 13.56Mhz IC cards, accommodating a wide range of RFID technologies for flexible integration.
• High User Capacity: Efficiently handles up to 2500 users, making it ideal for both small and large facilities.
• Robust Design: Weighs only 80 grams, ensuring easy installation while maintaining durability and reliability.
• Power Efficiency: Operates on a working voltage of DC12V with a current consumption of less than 100 mA, promoting energy savings.
• Wide Temperature Range: Compatible with ambient temperatures from -20 to 60 degrees Celsius, suitable for diverse environmental conditions.
• Convenient Read Distance: Allows for an RFID card reading distance of 1-10 cm, providing quick and efficient access without physical contact.

⚡ Easy Card Management:

🧰 Managing user cards is straightforward with our intuitive setup process:

1. Set the Card: Power off the device, connect the S1 jumper cap to the designated pins, and power it on. After a short waiting period, the green light will flash to indicate readiness.
2. Card Registration: Swipe two blank cards consecutively—the first to add a new user card and the second to delete an existing one. The red light will signify ongoing processing.
3. Finalize Setup: Power off and reconnect the jumper to finalize card registration, ensuring seamless integration into your security system.

💍 User Modification:

🔍 Add, delete, or manage users efficiently with clear steps:

1. To Add Users: In standby mode, swipe the "add card" followed by the cards intended for addition.
2. To Delete Users: In standby mode, swipe the "Del card" and follow it with the cards to be removed.
3. To Clear All Users: In standby, swipe "Del card," followed by "add card," and finally "Del card" to exit.

🔍 Experience the blend of security, efficiency, and ease of use with our 125Khz/13.56Mhz RFID Proximity Access Control System Board. This embedded solution is designed to meet the diverse needs of modern building security and access management.
