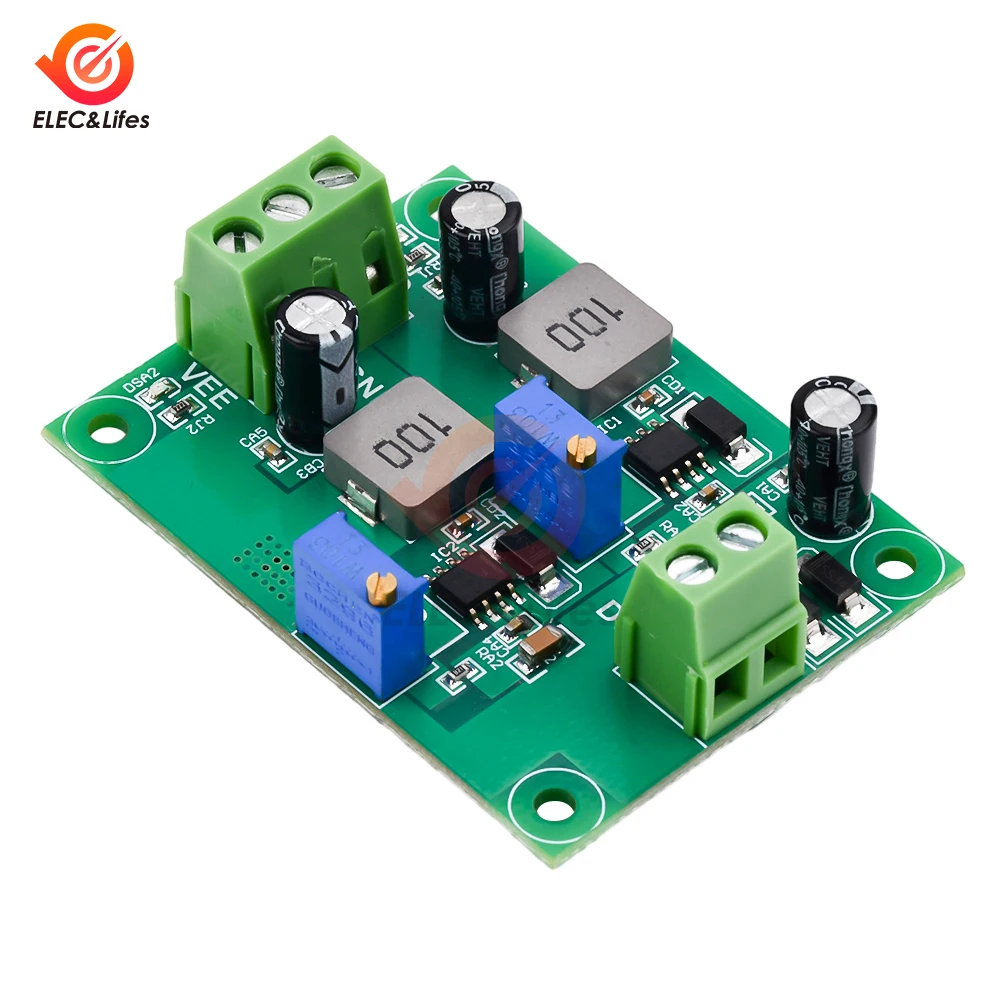

💍 Product Overview: Introducing the Positive Negative Voltage Stabilizing Power Supply Module, a cutting-edge solution designed for a range of applications requiring reliable and adjustable voltage output. This module excels in delivering stable voltage with minimal ripple, making it ideal for sensitive electronic projects.
🔧 Key Features:
- Multifunctional Design: This module performs various roles, including constant voltage regulation and both voltage rise and fall operations.
- Wide Input Voltage Range: The DC-DC voltage regulator supports input voltages from 5.5V to 35V, providing versatility for different power requirements.
- High Stability and Cost-Effectiveness: Constructed from high-quality materials, this power supply module offers exceptional stability while maintaining affordability.
- User-Friendly Operation: Designed for ease of use, the module allows for straightforward adjustments and setup, making it accessible for both novice and experienced users.
- Diverse Application Scenarios: Perfectly suited for smart homes, industrial Internet of Things (IoT) devices, and automotive power systems, among other uses.
🪶 Technical Specifications:
- Module Name: Output Positive and Negative Pole Voltage Rise and Fall Power Module
- Power Supply Range: DC5.5V to DC35V (Note: the input voltage must be approximately 2V higher than the desired output).
- Output Voltage Range: Precision adjustable from DC1.22V to 16V, with a simple clockwise increase and counterclockwise decrease mechanism.
- Output Current: Positive terminal supports a maximum of 3A, while the negative terminal offers up to 2A. Note that as voltage increases, current output will decrease. For example, at 16V output, the positive terminal provides around 1A and the negative around 0.7A.

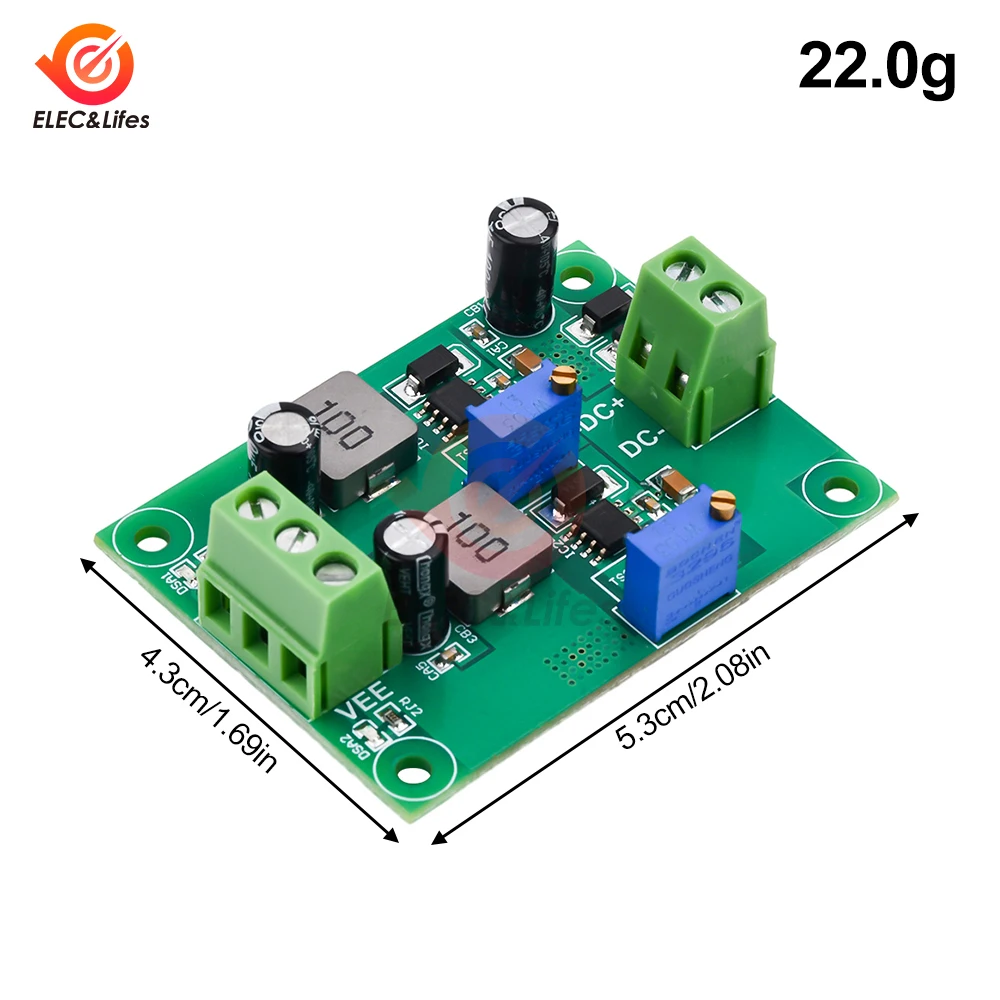

- Compact Size: The product dimensions are approximately 57mm x 42mm x 16mm, allowing for easy integration into various projects.
📦 Package Includes:
- 1 x Voltage Stabilizing Power Supply Module
This Positive Negative Voltage Stabilizing Power Supply Module is a reliable choice for anyone in need of a robust and adjustable power solution, designed with versatility and user-friendliness in mind.
